Hinge jig - Trend

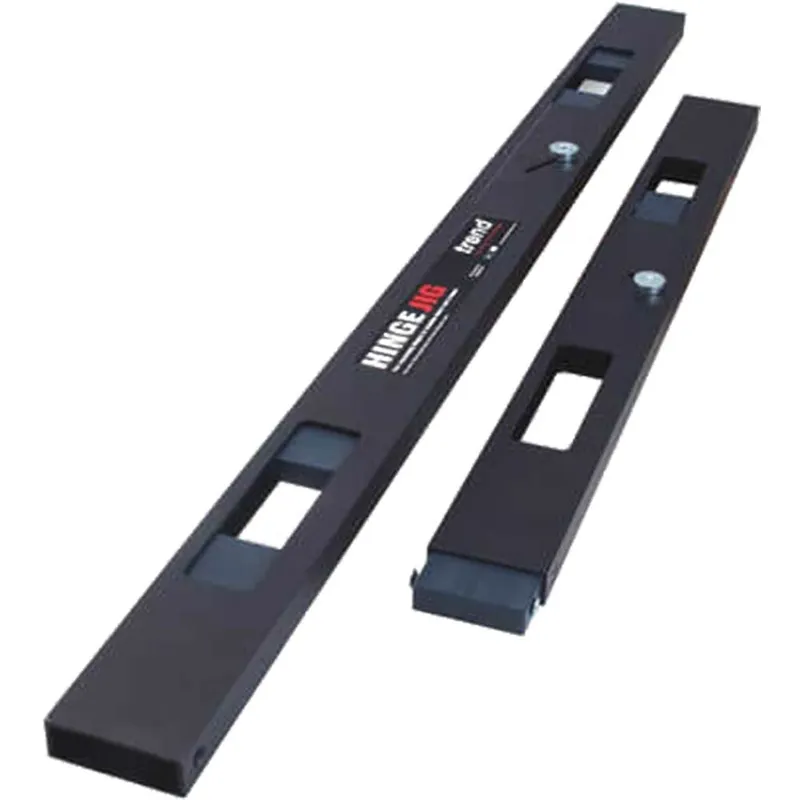

General description The Trend Hinge Jig is a portable template set designed for recessing hinges in wooden doors and frames. It is easy to use with minimal setup time, allowing for quick and accurate completion of the job. This jig is ideal for both on-site use and in joinery shops, enhancing productivity with excellent results. It features four apertures for fire door requirements and eliminates the need for conventional marking out. The setup is quick and simple, as the hinge itself serves as the pattern, ensuring clean and accurate recesses every time. Technical specifications Hinge Sizes Possible: Length Min: 67mm (2 5/8") Length Max: 127mm (5") Width Min: 9.5mm (3/8") Width Max: 35mm (1 3/8") Door Sizes Possible: Height Min: 1955mm (6' 5") Height Max: 2100mm (6' 10") Thickness Min: 16mm (5/8") Thickness Max: 44mm Router Compatibility: Light duty plunge router with 1/4 inch collet Required Router Cutter: Long reach, 12mm diameter with 70mm overall length Patent No.: GB2285410
